Large Fragment Instrument Set

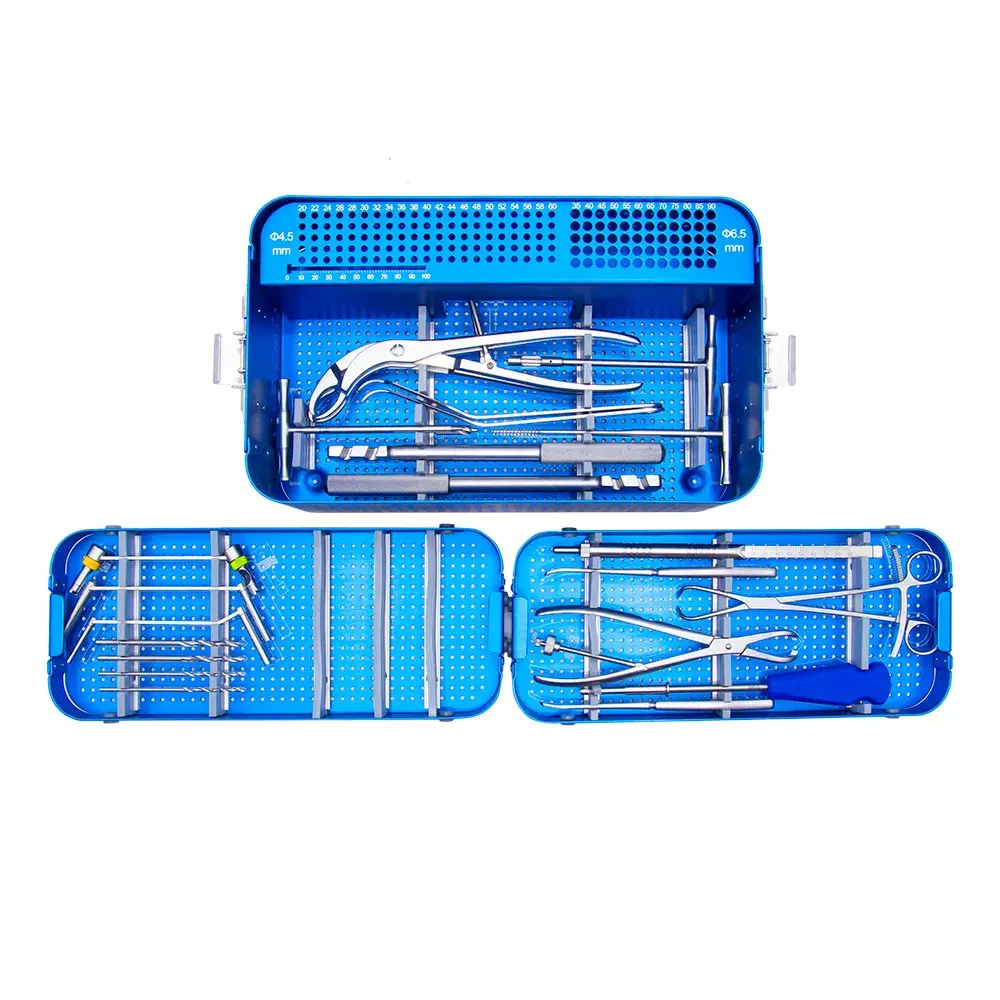

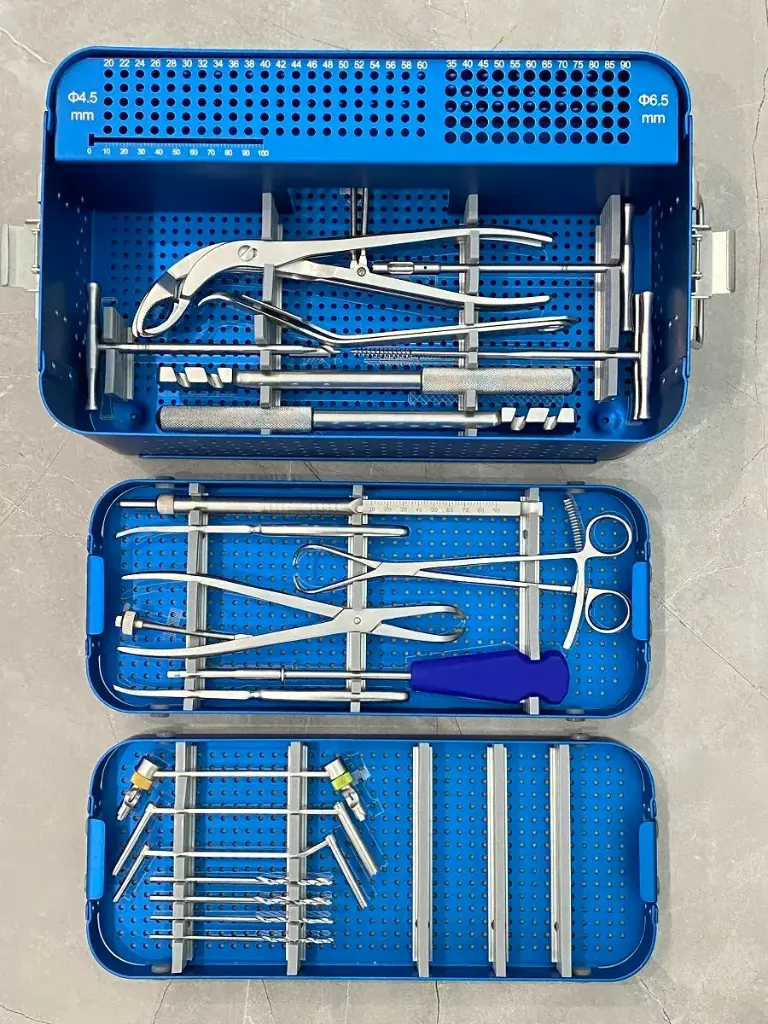

Large Fragment Instrument Set – Orthopedic Trauma Surgery Kit

The Large Fragment Orthopedic Instrument Set is a complete surgical kit designed for trauma and fracture fixation procedures involving large bones. Made from medical grade stainless steel, this set ensures strength, precision, and durability in orthopedic operations.

Key Features:

• Manufactured from medical stainless steel

• Includes essential instruments for large fragment fixation surgeries

• Available with or without aluminum box

• Reusable and autoclavable, suitable for hospitals and surgical centers

• Model: 4200-02

Specifications (Included Instruments):

1. Neutral and Load Drill Guide Φ3.2 – (4200-0201)

2. Drill & Tap Guider (Φ4.5/Φ6.5) – (4200-0202)

3. Drill & Tap Guider (Φ3.2/Φ4.5) – (4200-0203)

4. Drill Bit (Φ4.5×115mm) – (4200-0204, 0205)

5. Drill Bit (Φ3.2×115mm) – (4200-0206, 0207)

6. Depth Gauge (0–90mm) – (4200-0208)

7. Periosteal Elevator 15mm – (4200-0209)

8. Oblique Reduction Forcep (230mm) – (4200-0210)

9. Periosteal Elevator 8mm – (4200-0211)

10. Sharp Reduction Forcep (200mm) – (4200-0212)

11. Silicon Handle Screwdriver Hexagonal 3.5mm – (4200-0213)

12. Self-centering Bone Holding Forcep (270mm) ×2 – (4200-0214)

13. Retractor Width 40mm/18mm – (4200-0215)

14. Countersink Φ8.0 – (4200-0216)

15. Hollow Reamer Φ8.0 – (4200-0217)

16. Extraction Screw Hexagonal 3.5mm Conical – (4200-0218)

17. Tap Cortex 4.5mm – (4200-0219)

18. Tap Cancellous 6.5mm – (4200-0220)

19. Bending Iron – (4200-0221)

20. Aluminum Box – (4200-0222)
